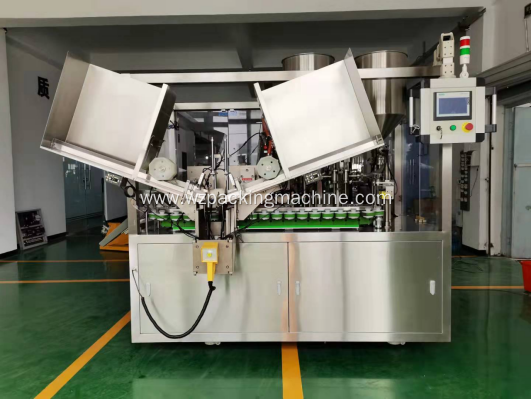

NF-120 Tube Filling And Sealing Machine

specification parameter：

Operating speed

Speed：80-120 PCS/min

Filling range：Hose 3-250g, aluminum tube 3-180ml

Pipe length：50-210mm pipe, 50-150mm alu pipe

Tube diameter ：Tube 13-50mm, aluminum tube 12-30mm

Infrastructure

Main machine area：4.5㎡

Working area：20㎡

Chiller area：1㎡

Covers ground area：4.5㎡

Dimension：(L×W×H)3200×1420×2400mm

(excluding discharge port 200 length)

Weight：2400Kg

Mainframe, power, etc

Power Supply：50Hz/380V  3P

Main engine servo：1.0KW

Heater：3.0KW*2

feature：

1. Fully automatic double-station type, and the unique main transmission system is designed using the advanced transmission technology of rotary disc servo.

2. The cams are forged steel parts to ensure the durability of its life.

3. Advanced synchronous belt conveyor cup,

4. The machine adopts motion control mode communication programming, touch screen operation, CAM and pneumatic components and other new technologies to control the mechanical action, which can ensure the high-speed stable reliability of the machine operation, so that the filling is more accurate.

5. In line with GMP requirements, wear-resistant sliding bearings are used above the working table, without refueling, reducing pollution;

6. Synchronous belt servo conveyor, so that the machine high-speed operation;

7. Advanced machine structure, advanced configuration, and equipped with automatic fault alarm English display, with easy operation, easy maintenance, easy cleaning and other features
