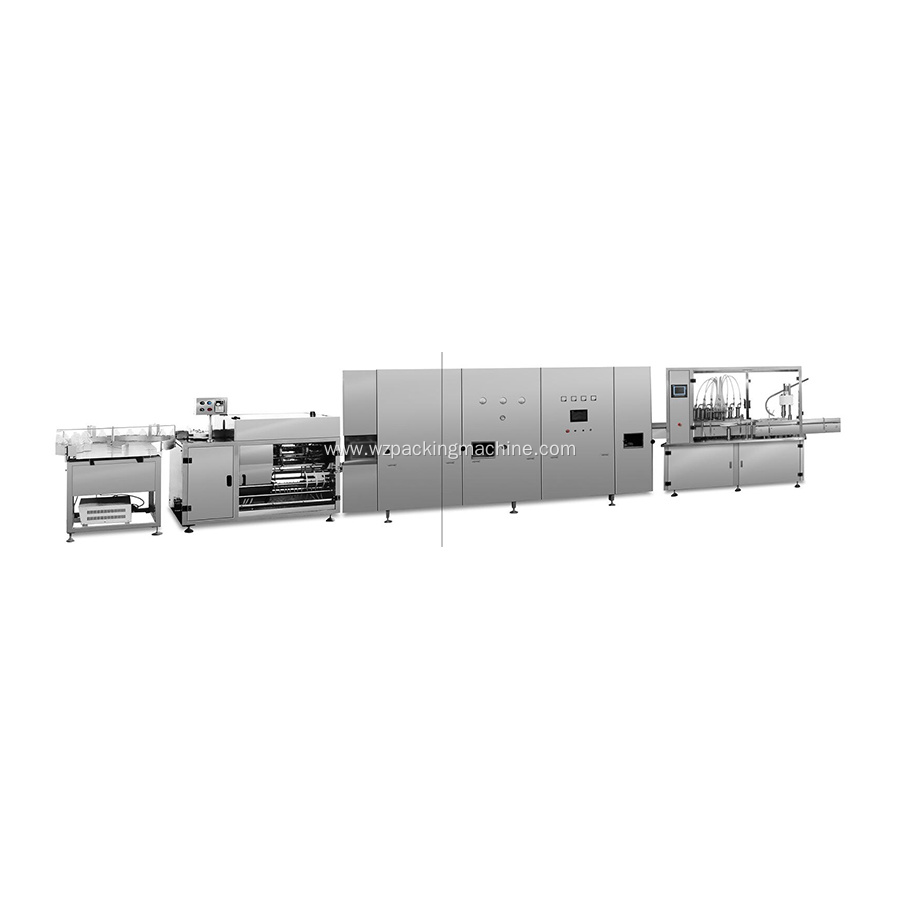

Bottle Filling & Capping & Labeling Packaging Line

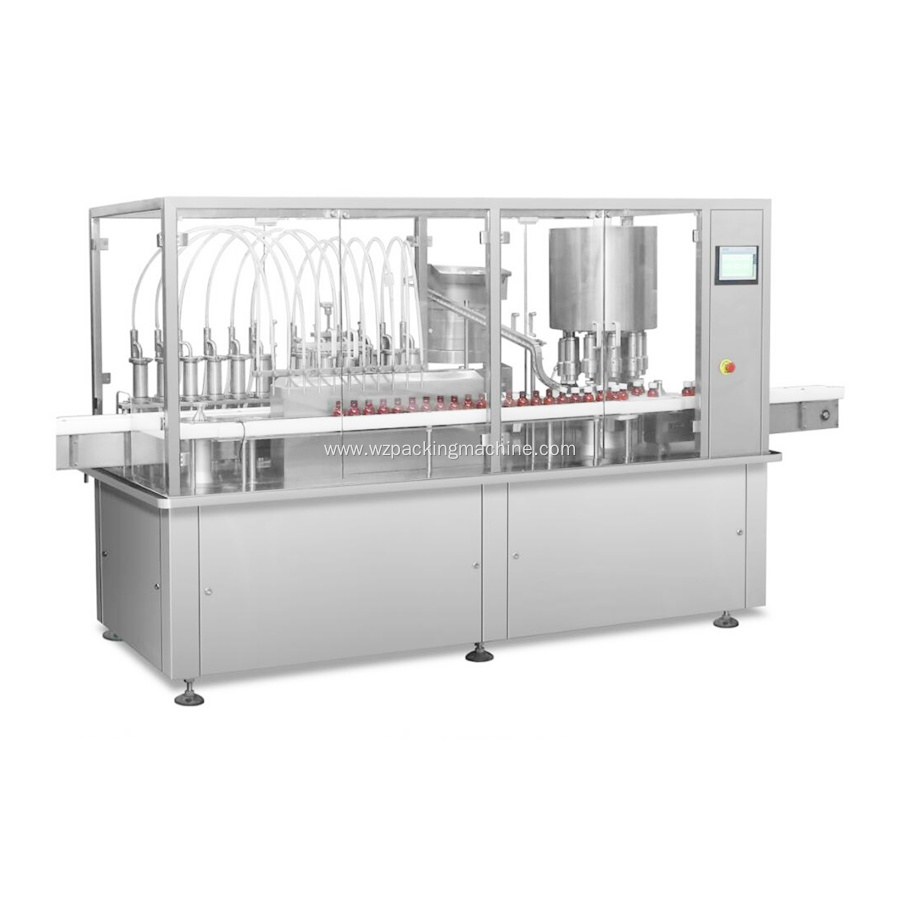

Model ZCG linear filling machine is mainly used for liquid filling in pharmaceutical factories. The machine adopts the mechanical mold clamping positioning, has the characteristics of simple and convenient replacement specifications, the machine transmission precision, stable, stable output and so on; Touch screen, PLC intelligent control, simple operation, convenient man-machine dialogue; With no bottle filling, no bottle stop function, can complete the bottle filling, filling and other processes, especially suitable for mass production. The working surface of this machine is protected by stainless steel material, and the whole machine meets the requirements of GMP.

Feature：

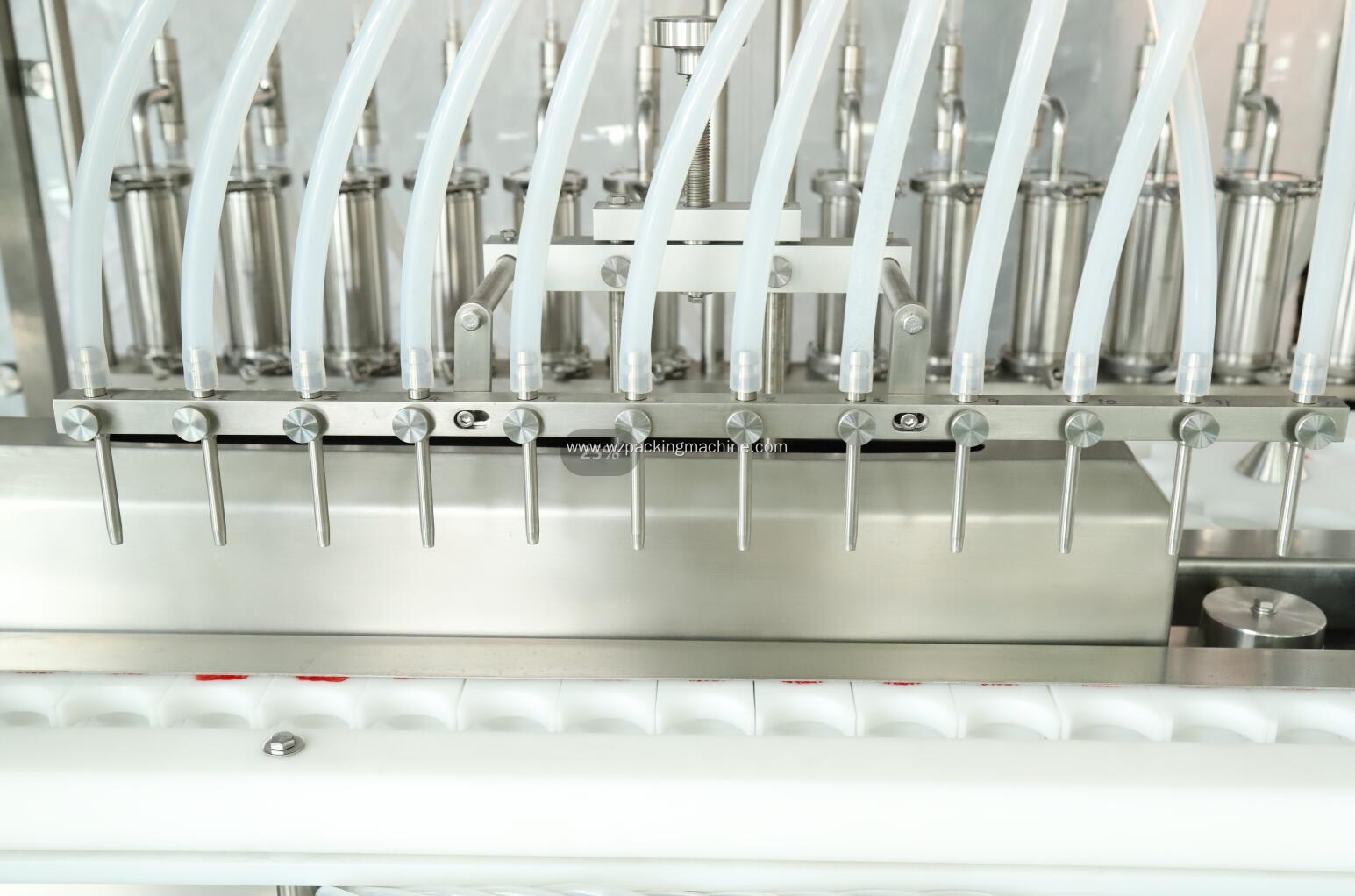

1. 316L stainless steel pump filling, servo system control, high precision.  Pump body adopts block card structure, easy to disassemble and clean;  Stainless steel check valve control.

2. Servo filling structure (one set of servo drive 8 sets of pumps, can touch screen to adjust the load)

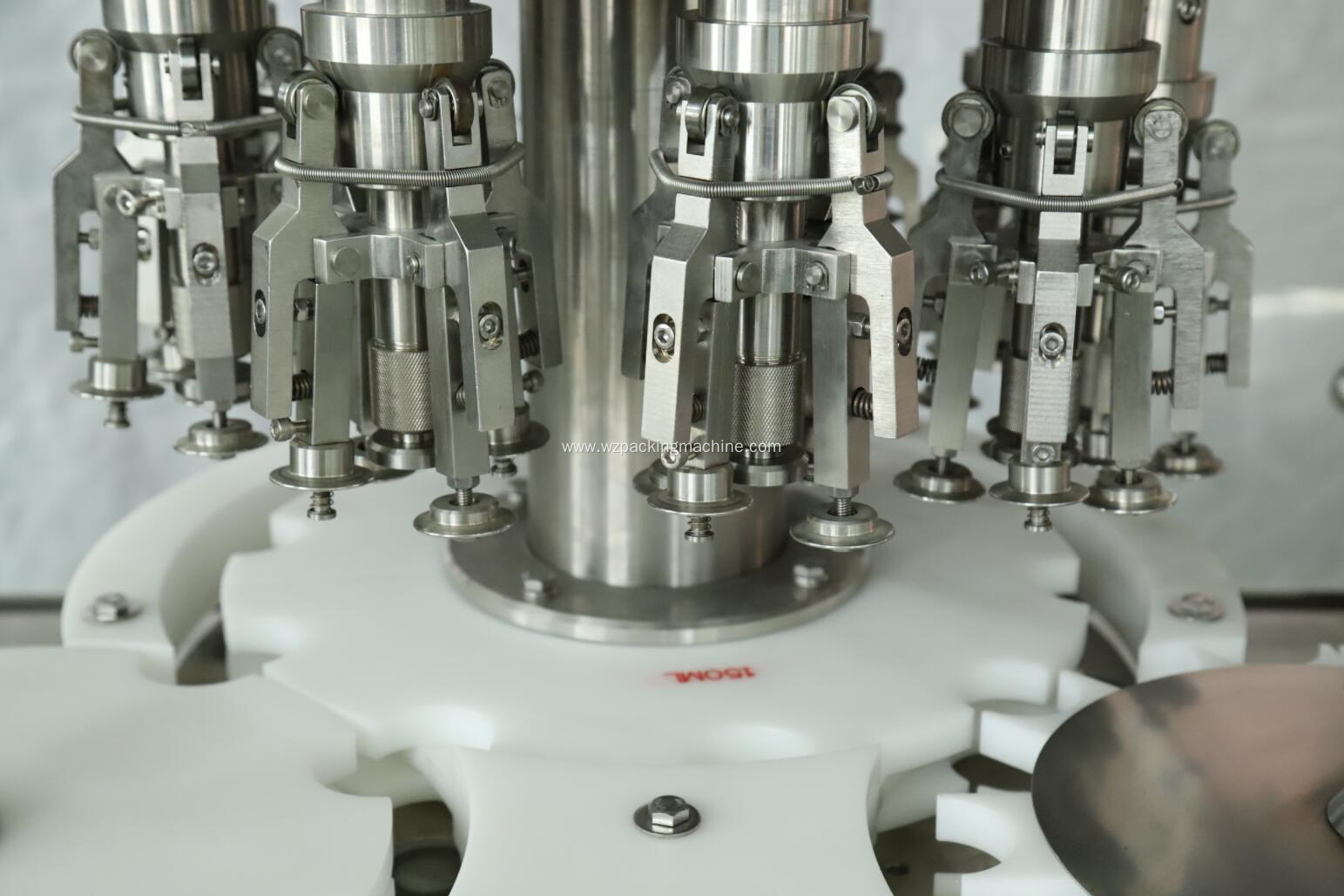

3. Servo three grip screw cap, suitable for different caps, touch screen to adjust the screw cap torque.

specification parameter：

Adapt to specifications：60~1000ml(The mold needs to be replaced.)

Filling heads：2~16 Heads Servo drive（Customized)

Number of screw caps：Single-head (Customized servo three-grip screw cap)

Measurement error：1% or less

Production pass rate：99.5% or higher

Power source：220V、50Hz

Power：4.0 KW

Weight：About 850kg

Product Categories : Full Automatic Packaging Line
