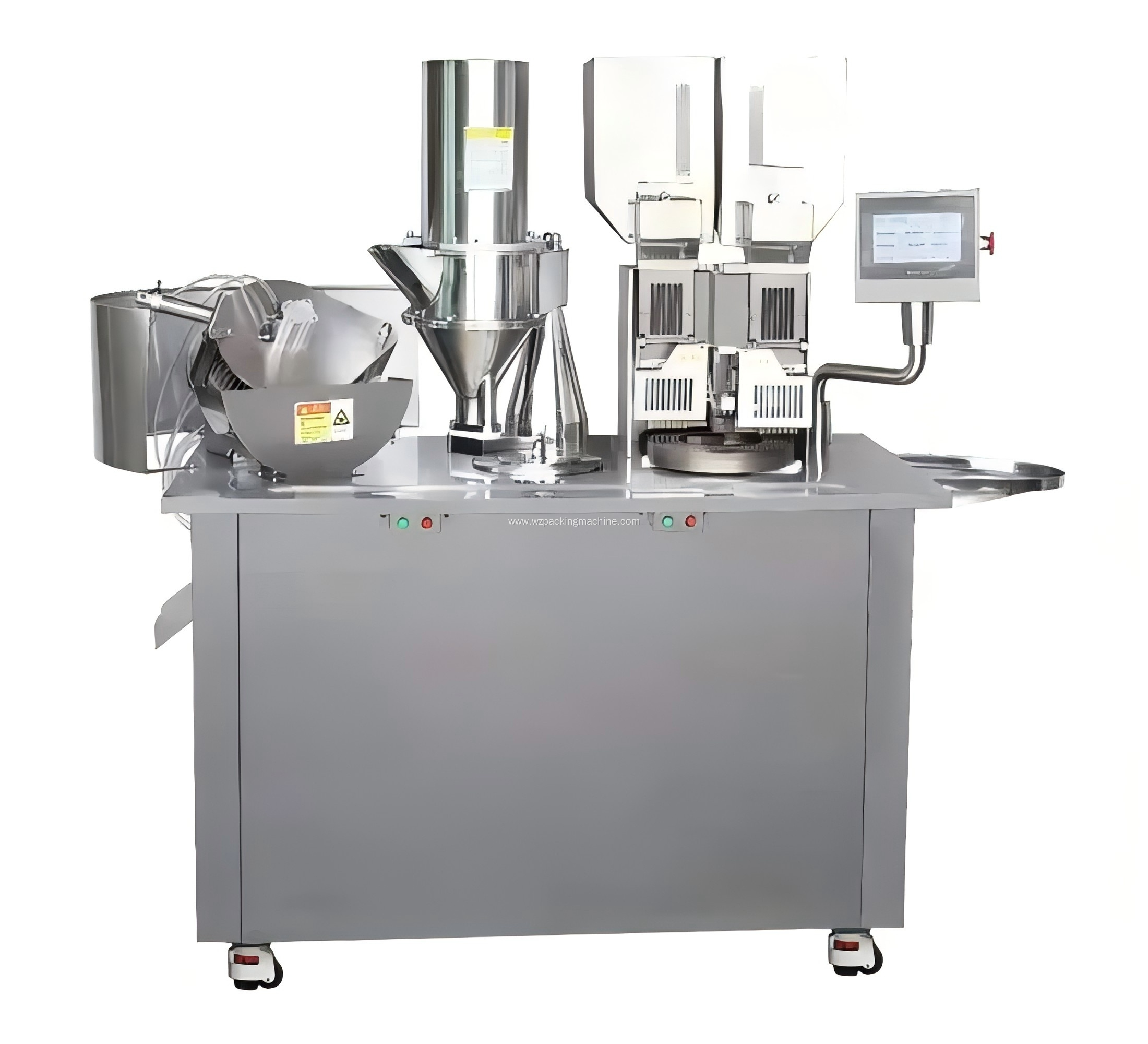

CGN208-S Double-head Capsule Filling Machine

Basic Info

Model No.: CGN208-S

Place Of Origin: China

Control Mode: Semi-Automatic

Old And New: New

Filling Material: Pellet, Powder

Capsule Model: 3#, 0#, 00#, 2#, 4#, 1#

Vacuum Pump Type: Dry

Warranty Period: 1 Year

Core Selling Point: High Productivity

Applicable Industry: Other

Out-of-warranty Service: Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Marketing Type: Other

Mechanical Test Report: Not Available

Video Factory Inspection: Provided

Core Component Warranty Period: More Than 5 Years

Core Components: Other

Production Capacity: 2.5-4 pcs/hour(depend on capsule size）

Filling Type: Pellet, powder without moisture, granules

Power: 4.0kw

Compressed Air: 0.03m3/min 0.7Mpa

Vacuum Pump: Pumping rate 40m3/h

Overall Dimension Of Machine (L*W*H): 1.790×0.7×1.720 m

Overall Dimension Of Package (L*W*H): 1.950×0.87×1.75 m

Air Cargo Outsourcing Size: 1.950×0.8×1.50m

Net Weight: 450 kg

Gross Weight: 550kg

Additional Info

Packaging: wooden case

Transportation: Ocean

Port: ningbo,shanghai

Product Description

summary:

1 Semi-Automatic Capsule Filling Machine is our company to make the shortcomings of the existing semi-automatic Capsule Filling Machine.

2 programmable control system, touch screen panel operation, stepless frequency conversion debugging, pneumatic joint control adopted in the whole machine.

3 The design of the equipment adopts the dialing mode of double-head automatic capsule filling machine. In the aspects of dialing bag speed, mold replacement, filling degree, maintenance and so on, the old semi-automatic capsule filling machine has made significant progress, and the equipment has become more fast, convenient, simple and stable. In terms of locking, we use pneumatic control and automatic locking to save manual time.

4. Equipment In terms of man-machine, our company has installed the safety door device and the safety door is not closed, but the equipment is in a static state and cannot run. On the powder filling station, a visual window is added to observe the degree of powder loading. On the lock lock, the barrier plate is installed to avoid accidents when the lock is over. On the right side of the equipment, a capsule tray placement rack is added for easy application.

5 The fuselage and working table are made of stainless steel to prevent corrosion and oxidation.

6 The equipment can be filled with different types of capsules for powder, granules, pills and other drugs and health products.

Product Categories : Pharmaceutical Machinery > Capsule Filling Machine

Product Images
