Basic Info
Model No.: CGN208-D
Product Description
1) Simple structure in linear type , easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

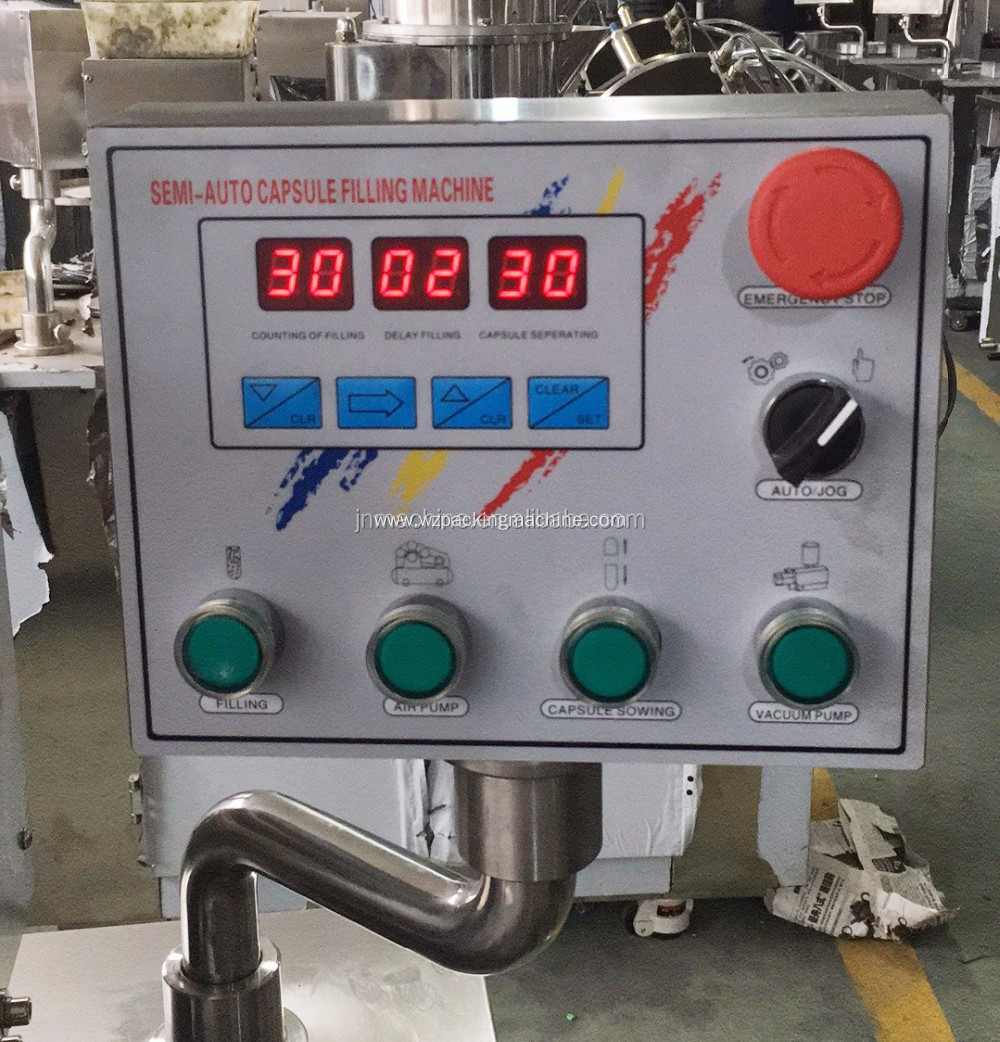

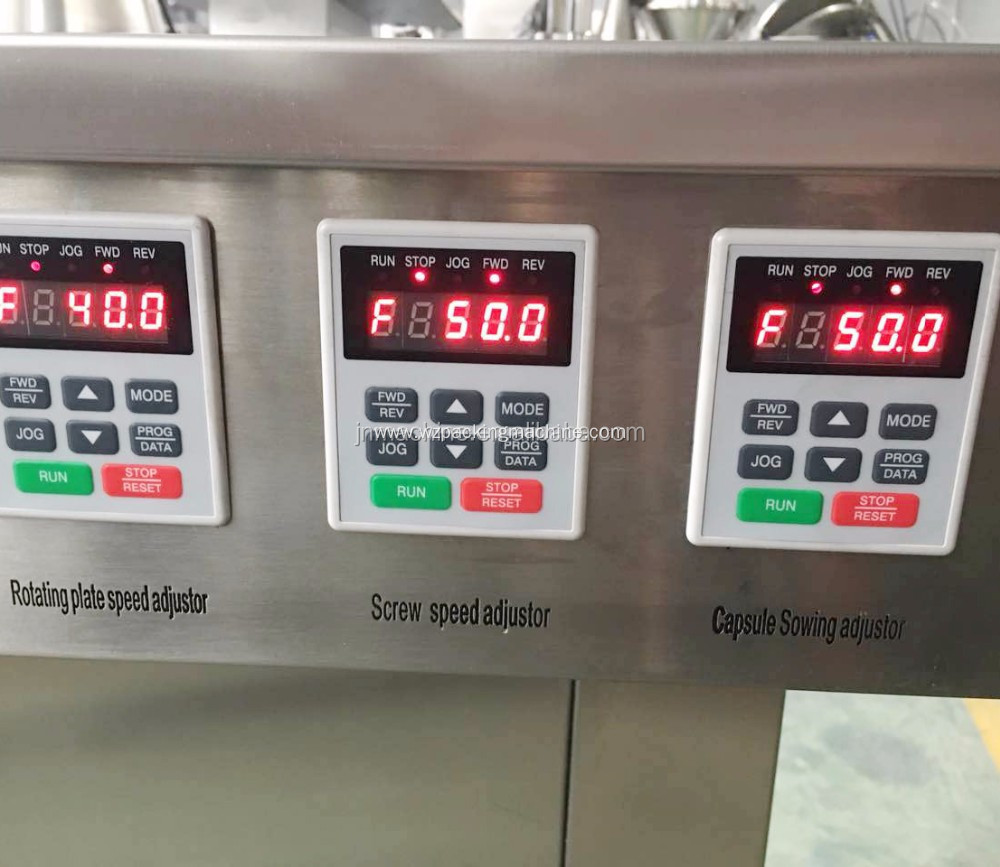

3) This machine is one type of electricity and pneumatic combined control, PLC and touch screen control, automatic counting electronics, programmable controller and frequency conversion speed regulating device.

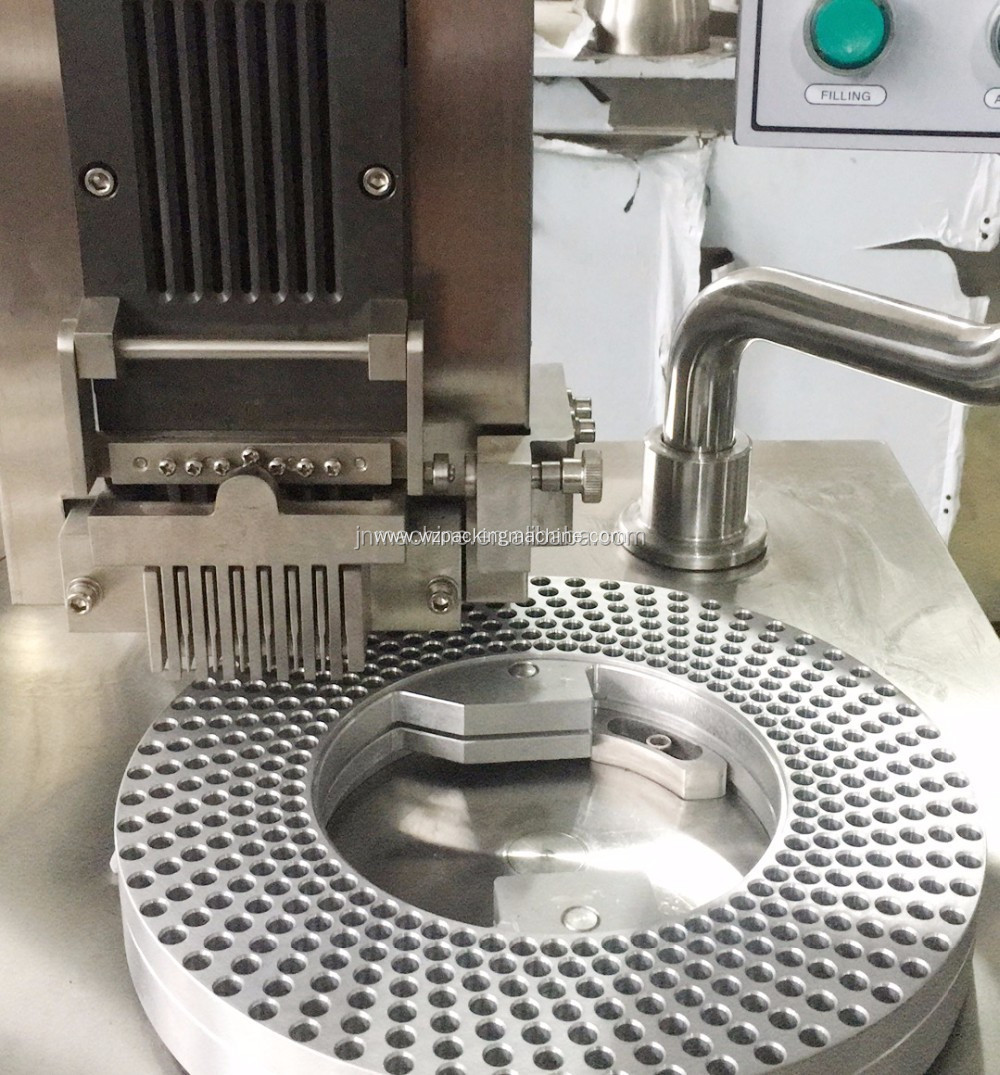

4) The new type of capsule orientating adopts columns pill positioning design.
5) Instead of manual filling, it reduces labor intensity, which is the ideal equipment for capsule filling for small and medium-sized pharmaceutical companies, pharmaceutical research and development institutions and hospital preparation room.
Product Description
| SPECIFICATIONS FOR SEMI Automatic Capsule Filling Machine | |
| Time for replacing debugging mould | 5-8 minutes (for beginners) |
| Productivity | 10-25 thousand pills per hour (according to number of capsule) |
| Suitable capsules | 000#.00L#.00#0L#.0#1#,2#,3#,4#,capsulemade by machine |
| Type of filling agent | Powder of no clamminess, small granules |
| Total power | 4.0kw |
| Air pressure | 0.03m3/min 0.7Mpa |
| Vacuum pump | Pump capacity 40m3/h |
| Dimensions of equipment LxWxH | 1140x700x1630 mm |
| Dimensions of packaging | 1650x800x1750 mm |
| Net weight | 380kg |
| Gross weight | 450kg |
| Packaging | |
| Size | 1650 (L) * 800 (W) * 1750 (D) MM |
| Weight | 480 KG |
| Packaging Details | The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Product Categories : Pharmaceutical Machinery > Capsule Filling Machine
Product Images
