Basic Info
Model No.: DPP-80
Product Description
| Punch Frequency | 0-35 times/min |
| Production Capacity | 2100 edition/hour |
| Max. Formed area and Depth | 80*115*40（mm） |
| Travel Range | 20-80 mm（adjustable） |
| Standard Plate | 80*57mm （adjustable） |
| Air Pressure | 0.6-0.8（M） |
| Total Power | 380V/220V 50Hz 4.5KW |
| Main Motor Power | 0.75KW |
| PVC Hard Pieces | 0.15-0.5*80(mm) |
| PTP Aluminum Foil | 0.02-0.035*80(mm) |
| Dialysis Paper | 50-100g*80(mm) |
| Mold cooling | Water cycle |
| Overall Dimensions | 1700*600*1020(mm) |
| Weight | 400（Kg） |
| Noise target | <75dBA |
Product Categories : Pharmaceutical Machinery > Alu/Alu Alu/PVC Blister Packing Machine

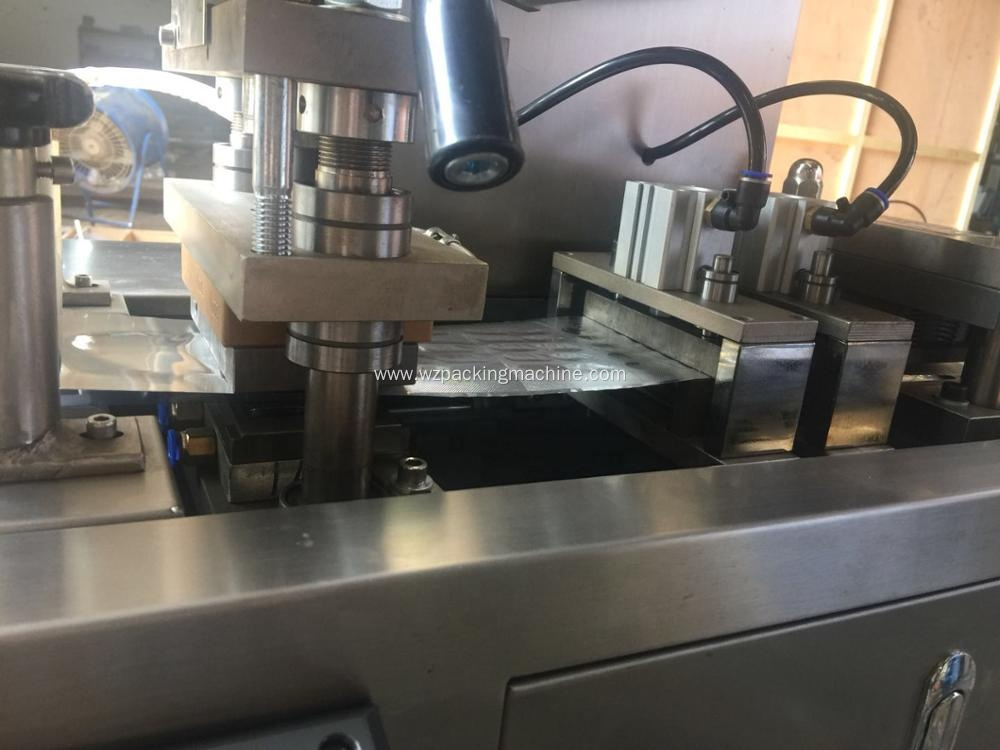

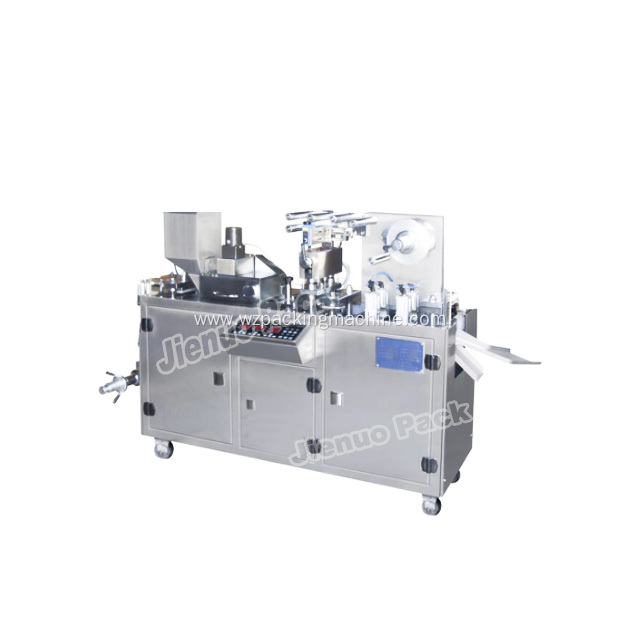

Product Images
